Skimmed & De-webbed TD5 Manifold
£264.00£288.00 inc. VAT Select options

Skimmed & De-webbed TD5 Manifold

£264.00£288.00 inc. VAT

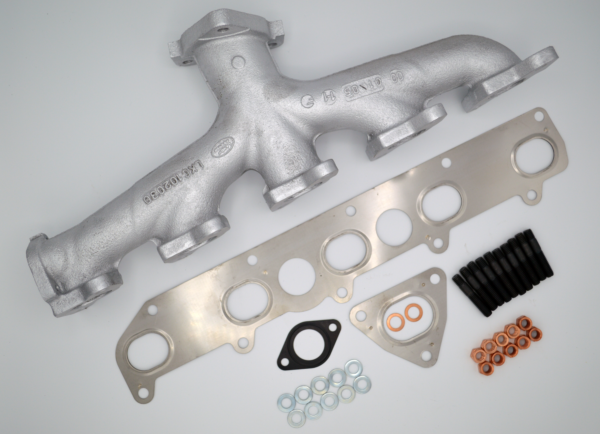

Skimmed and de-webbed manifolds for Land Rover TD5 engines. Available in standard (short studs) and HD formats (longer studs and spacers). All kits come with a complete fitting kit with Wurth studs and nuts.

This includes a £60.00 plus VAT surcharge which will be refunded to you once we have received your old unit back and is in a serviceiable condition. (please put your name and address in the box when returning).

(1 customer review)

All our manifolds are checked before machining is done to check for broken threads and distortion and over-size holes, any that don’t meet the grade are scrapped off.

We machine our manifolds in-house on a purpose-built jig to ensure no movement occurs during the machining process.

The EGR and turbo mounting faces are also cleaned up.

EGR M6 tapped holes are cleaned out.

A final quality check is performed and a coat of VHT silver is applied to prevent machined surfaces from corroding.

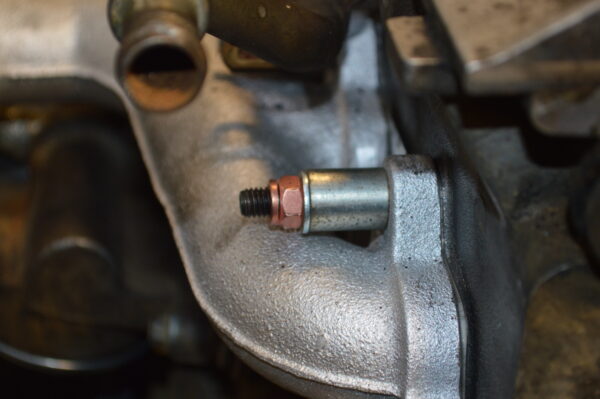

For the HD kit, the studs are longer and feature expansion spacers to allow better heat dispersion for higher-tuned motors.

PLEASE NOTE: Each manifold carries a surcharge of £60+VAT which will be refunded after inspection on successful return of a standard, undamaged unit in useable condition to us. If you are unsure if your manifold will qualify for this, please contact us.

Additional information

Weight N/A
Dimensions 52 × 5.5 × 11 cm

Standard, HD

1 review for Skimmed & De-webbed TD5 Manifold

  1. Dennis

    Excellent product and even better customer service. Shipping to EU and help after the sale make Hadley Services stand out from the competition.
